Software and Hardware Complexes for Building up I&C
- SHC undergoes the full range of required testing for compliance with its specifications at a testing site of the manufacturing plant, including testing with adjacent systems.
- All hardware in SHC is tested for electromagnetic compatibility, shock and seismic resistance, for compliance with climatic requirements, and undergoes IP testing.
Moscow Plant «FIZPRIBOR” Ltd. suggests using its equipment, that has reference in circuitry and in design and engineering solutions, for building up the following systems:
SHC CMS NO, WP I&C – Software and Hardware Complex of Control and Monitoring System for Normal Operation, Water treatment I&C
SHC CMS CWT – Software and Hardware Complex of Control and Monitoring System for Chemical Water Treatment
SHC EP-PP ESFAS – Software and Hardware Complex of Initiating part of Emergency and Preventive Protection, Initiating and Actuating parts of Engineered Safety Feature Actuation System
SHC DAS – Software and Hardware Complex of Diverse Actuation System and other system, as required.

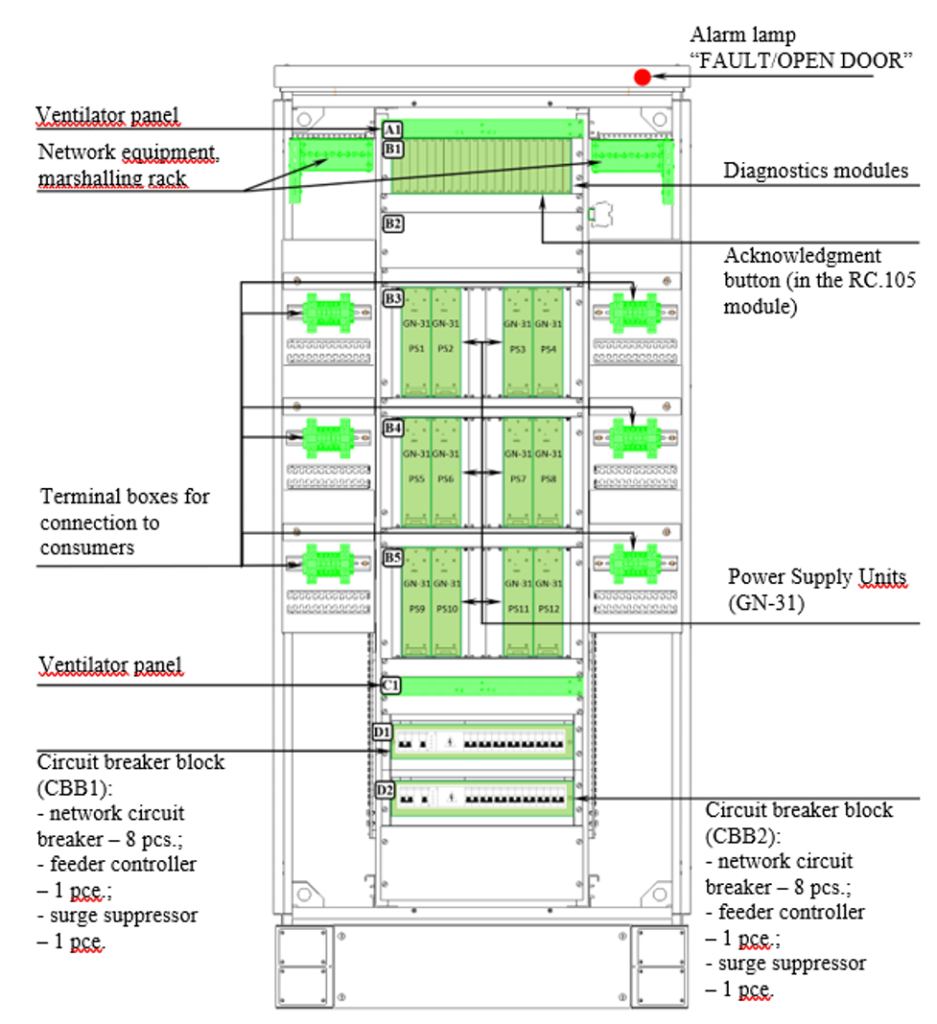

SP.142 is designed
to convert external mains 220 V DC or AC
into 24 V DC
SP.142 supplies power to
(up to 12 pcs.):
• SA.142 automation cabinets
• Control panels of on-line supervisory facilities
•Other automation facilities that require 24 V DC power supply.
SP.142 is produced in the following designs:
• “~220 V” power supply cabinet — external power supply from two single-phase 220 V AC mains
• “=220 V” power supply cabinet — external power supply from two 220 V DC mains
• “220 V” power supply cabinet — external power supply from single-phase 220 V AC mains and from 220 V DC mains
• Power supply cabinet with the number and type of external power supply (=220 V and/or 220 V) as specified in the production assignment for the manufacturing plant

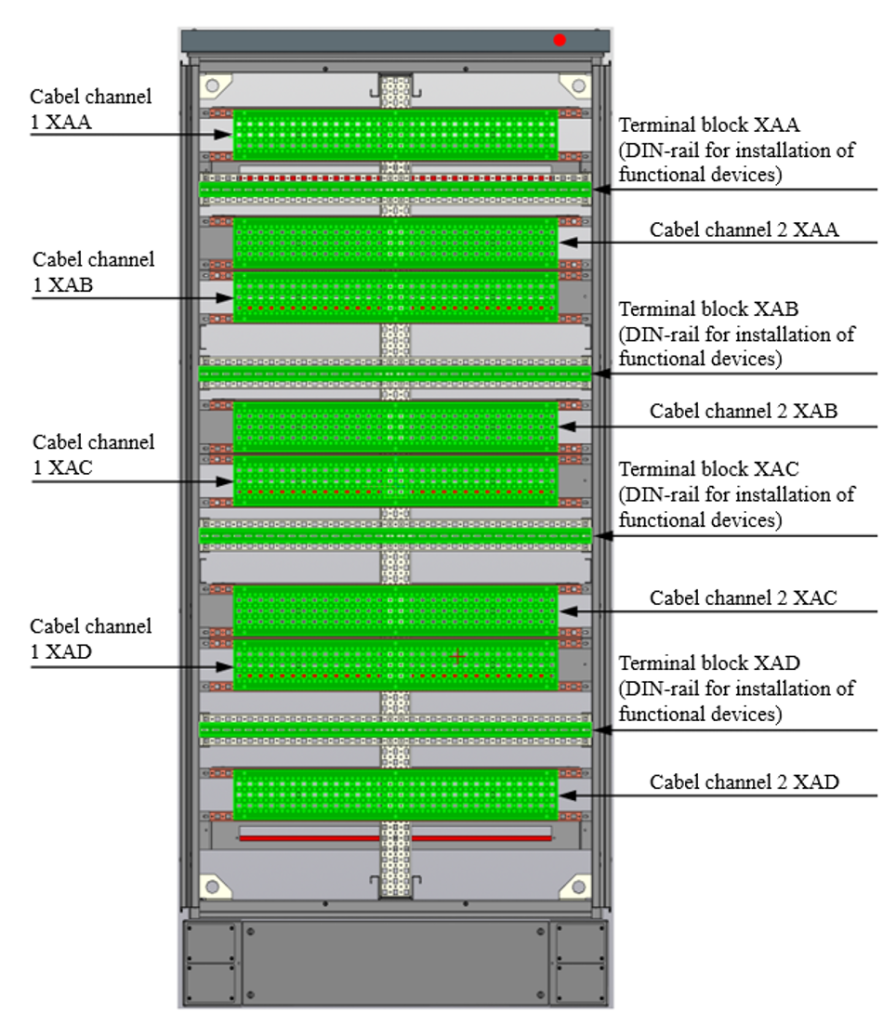

ShK3 provides entry to communication cables and connects them with external devices with the total number of conductors of up to 1400 and cross-section of up to 1.5 mm2

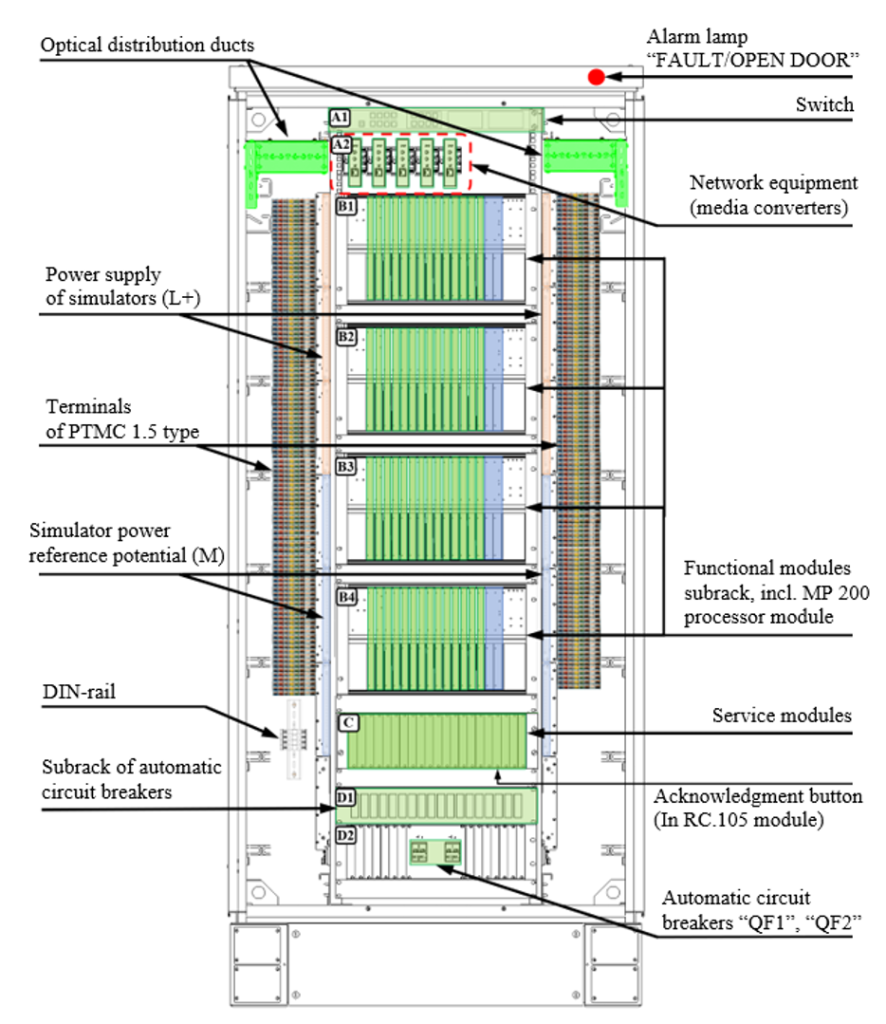

SA.142 is produced in the following designs:
• Automation cabinet (ShA)
• Self-contained automation cabinet (ShAA)
• Galvanic isolation and signal multiplication cabinet (ShUGRS)
• Initiating part I/O and safety panel cabinet (ShVV)
• Initiating part automation process and safety panel cabinet (ShPA)
• Priority control cabinet (ShPU)
